Agniman Corporation

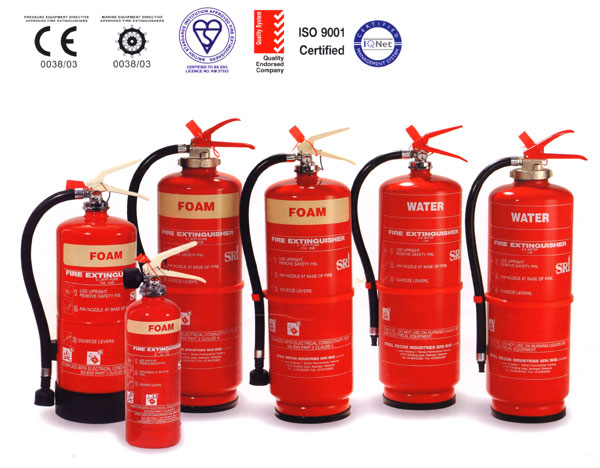

BS EN3 Water & Foam Type Fire Extinguisher

•	British Standards Institution - BSI approval.
•	Foam type is suitable for Class A & B.
•	Water type is suitable for Class A.
•	Protective plastic lining.
•	Colour coded for instant recognition.
•	High quality and good value.
•	ISO 9001 Certified System by QAS Australia.

TECHNICAL SPECIFICATION
EXTINGUISHER TYPE	6L FOAM	2L FOAM	9L FOAM	9L WATER	9L FOAM	9L WATER
	STORE PRESSURE TYPE (NITROGEN PROPELLENT)				CO2 CARTRIDGE
MODEL NO.	FEX102	FEX116	FEX103	FEX101	FEX112	FEX111
FIRE RATING	13 A 144B	5A 34B	21A 183B	13A	13A 183B	13A
OPERATING TEMPERATURE	O°C to 60°C
OPERATING PRESSURE	12 Bar
TEST PRESSURE	25 Bar
HEIGHT	555mm	400mm	625mm	625mm	630mm	630mm
FULL WEIGHT	9.2kg	4.0kg	13.5kg	13.5kg	14.2kg	14.2kg
DISCHARGE TIME	50 sees	1 2 sees	65 sees	61 sees	94 sees	89 sees
RANGE OF THROW (approx)	4-5M	2 M	4-5M	6M	4-5M	6M
CARTON SIZE mm	190x210x565	125x160x430	200 x 200 x 646	200 x 200 x 645	200 x 200 x 645	200 x 200 x 645

Mechanical Foam	ABC Stored Pressure
Dry_chemical_power	Carbon_dioxide
BS EN3 Water & Foam Type Fire Extinguisher	BS EN3 PowerType Fire Extinguisher
