Agniman Corporation

Fire Hose Reel

Features
•	Side Plate powder painted finish red
•	Automatic hose reel has integrated automatic stop valve which will open after 2 revolution of the reel
•	Threaded Inlet connection
•	Outlet connection for hose can be rotated for left and right direction
•	Waterways made from non ferrous metals which ensure corrosion free*
•	Maximum working pressure 15Bar, test pressure 20bar
•	Side plate available in stainless steel

European fire hose reel

SRI fire hose reels are tested and approved to European Standard EN671 by British Standards Institution and to Australian Standards AS1221 by QAS Australia. These approvals require the certification authority to carry out regular inspection of our hose reels manufacturing facility, testing of hose reels and auditing of quality system. With rigorous inspection and testing of our fire hose reels during production the performance and reliability is at the highest standard. SRI manufactures a wide selection of fire hose reel, 3/4" and 1", swing and fixed type, manual and automatic. Swing type hose reel has double 180° rotating hinge, which allows hose reel to be mounted in a recessed wall and fixed type hose reel is complete with hose guide which allows the hose withdrawal in all directions.

Code No.	A	Hose Diameter x Length	B	Type
HRS038-MS-022-RD	22"(559mm)	25mm x 30m	350mm	Swing Manual
HRS038-MS-722-RD	22"(559mm)	25mm x 30m	290mm	Swing Manual
HRS038-MS-019-RD	19"(483mm)	25mm x 30m	350mm	Swing Manual
HRS037-MS-019-RD	19"(483mm)	1 9mm x 30m	350mm	Swing Manual
HRS037-MS-022-RD	22"(559mm)	1 9mm x 30m	350mm	Swing Manual
HRS036-MS-022-RD	22"(559mm)	25mm x 30m	310mm	Fixed Manual
HRS036-MS-722-RD	22"(559mm)	25mm x 30m	240mm	Fixed Manual
HRS036-MS-019-RD	19"(483mm)	25mm x 30m	310mm	Fixed Manual
^RS035-MS-019-RD	19"(483mm)	1 9mm x 30m	310mm	Fixed Manual
..i*S035-MS-022-RD	22"(559mm)	19mm x 30m	310mm	Fixed Manual
HRS061-MS-722-RD	22"(559mm)	25mm x 30m	290mm	Swing Automatic
HRS060-MS-719-RD	19"(483mm)	1 9mm x 30m	290mm	Swing Automatic
HRS056-MS-722-RD	22"(559mm)	25mm x 30m	240mm	Fixed Automatic
HRS055-MS-719-RD	19"(483mm)	1 9mm x 30m	240mm	Fixed Automatic

SIRIM, PSB APPROVED BS EN671-1
HRS038-SS-022-RD	22"(559mm)	25mm x 30m	350mm	Swing Manual

BSI APPROVED BS EN671-1
HRS033-SS-022-RD	22"(559mm)	25mm x 30m	290mm	Swing Manual
HRS034-SS-022-RD	22"(559mm)	19mm x 30m	290mm	Swing Manual
HRS031-SS-022-RD	22"(559mm)	25mm x 30m	240mm	Fixed Manual
HRS032-SS-022-RD	22"(559mm)	19mm x 30m	240mm	Fixed Manual
HRS029-SS-022-RD	22"(559mm)	25mm x 30m	290mm	Swing Automatic
HRS030-SS-022-RD	22"(559mm)	19mm x 30m	290mm	Swing Automatic
HRS027-SS-022-RD	22"(559mm)	25mm x 30m	240mm	Fixed Automatic
HRS028-SS-022-RD	22"(559mm)	19mm x 30m	240mm	Fixed Automatic

AS APPROVED TO AS1221
HRS035-GI-019-RD	19"(483mm)	19mm x 36m	310mm	Fixed Manual
HRS037-GI-019-RD	19"(483mm)	1 9mm x 36m	350mm	Swing Manual
HRS154-MS-600-RD	600mm	1 9mm x 36m	210mm	Fixed Manual

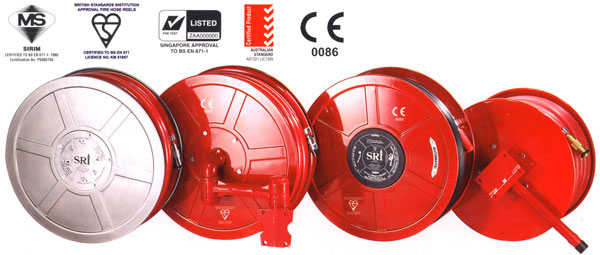

Swing Type (Recessed Mounting)	Swing Type (Surface Mounting)	Fixed Type (Surface Mounting)

European Fire Hose Reel

Fire Hose Reel
